1. PKSP-0.812x1.062x0.187-COMPO
  2. PKSP
  3. Double Acting/Piston Seals
  4. Standard Seals

PKSP-0.812x1.062x0.187-COMPO

  • d (h9)
  • D (H9)
  • Material
  • D1
  • H1+0.2
  • Unit
  • d1

$ 21.41
$ 17.13 17.13 AUD

$ 21.41

Quantity
Your Price
1 - 4
$ 17.13
5 - 9
$ 16.27
10 - 24
$ 15.42
25 - 49
$ 13.92
50 +
$ 10.71

This combination does not exist.

Add to Cart

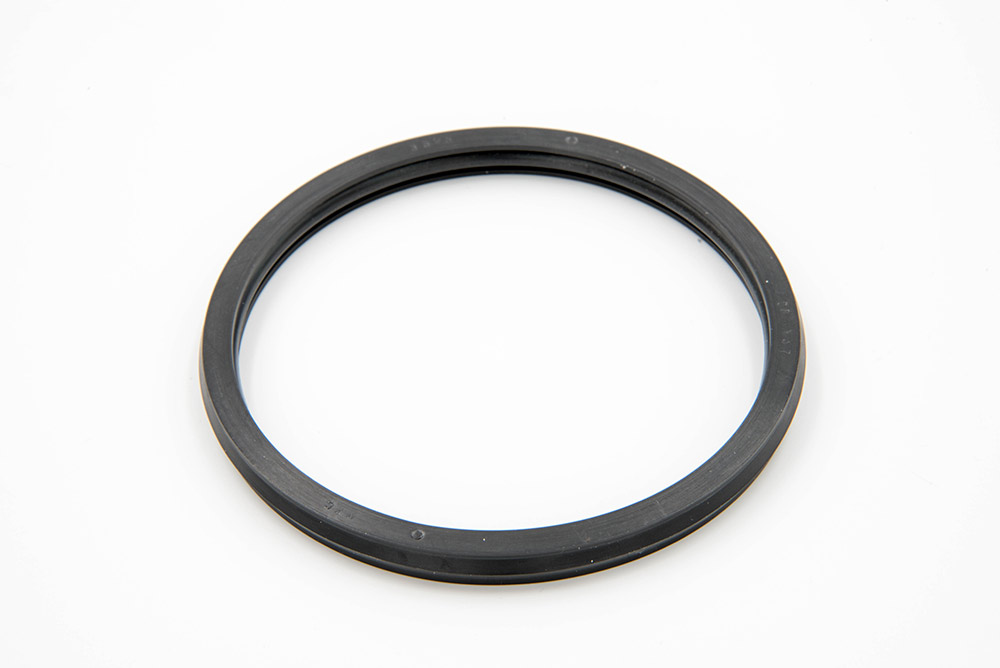

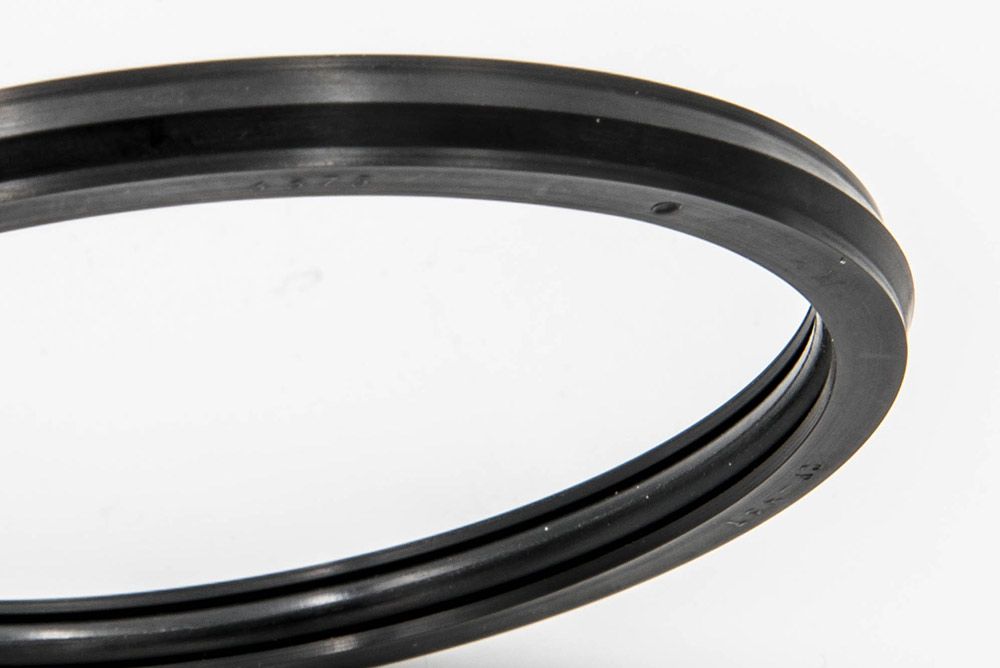

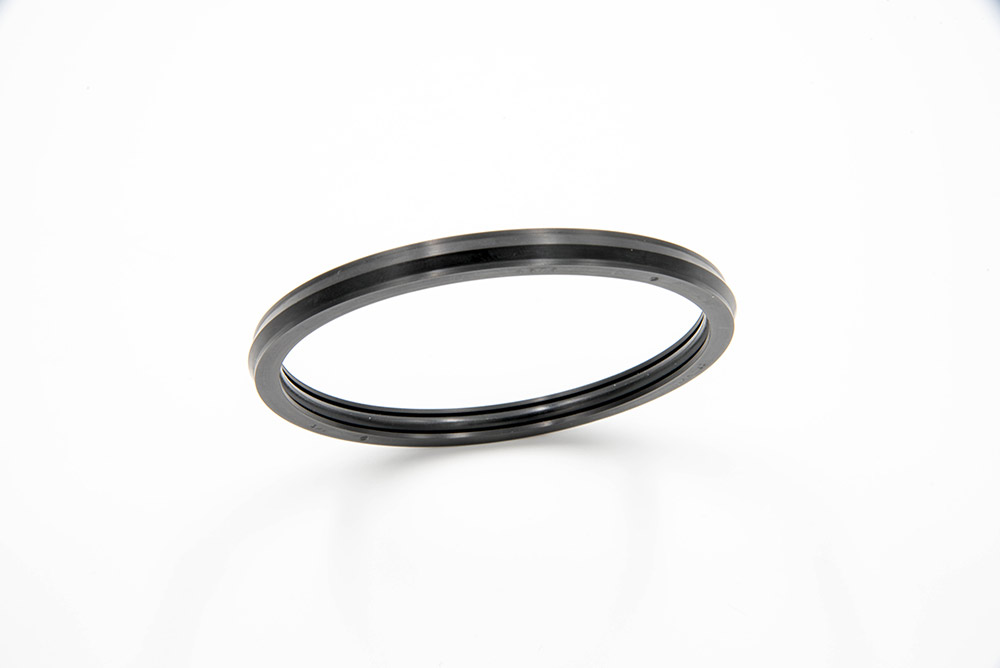

PKSP 0.812" X 1.062" X 0.187" COMPO

Details:

d (h9)
:
0.812" (20.62mm)
D1
:
1.062" (26.97mm)
H1+0.2
:
0.187" (4.75mm)
d1
:
0.82" (20.83mm)
D (H9)
:
1.062" (26.97mm)
Material
:
COMPO
PKSP-0.812x1.062x0.187-COMPO

Design

  • PKSP is a compact double acting piston seal which suitable for low to high pressure, medium to heavy duty applications. The seal design comes with a standard self-lubricating cap ring which is loaded with an energizer. It is designed to be used in a variety of equipment and is suited for earth moving equipment. It also comes in a wide range of material options to extend its service temperature range.

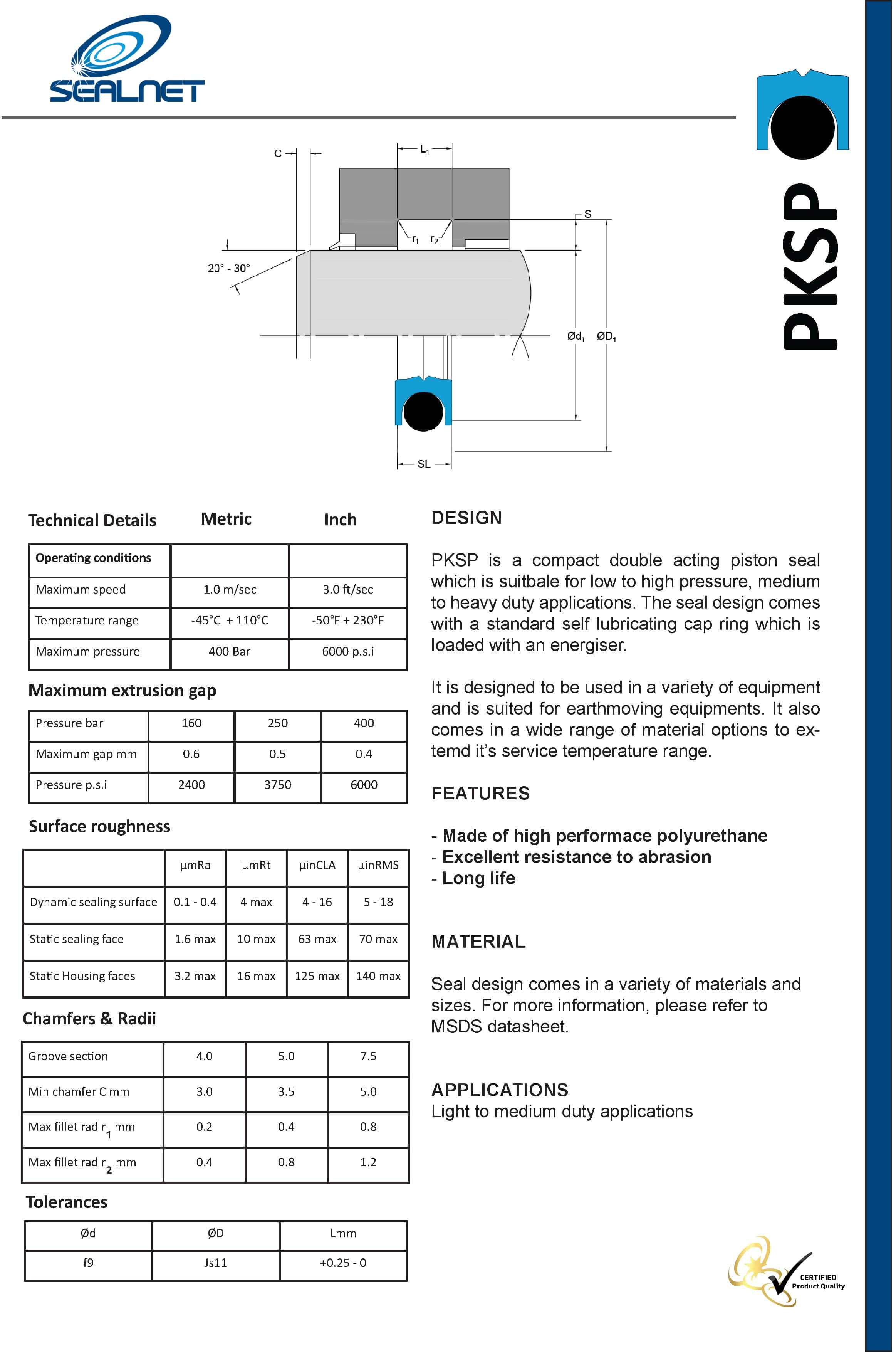

Download Datasheet


Features

  • Made of high performance polyurethane
  • Excellent resistance abrasion
  • Long seal life


Applications

  • Light to medium duty applications
