1. PK8-114.5x130x6.3-COMPO
  2. PK8
  3. Double Acting/Piston Seals
  4. Standard Seals

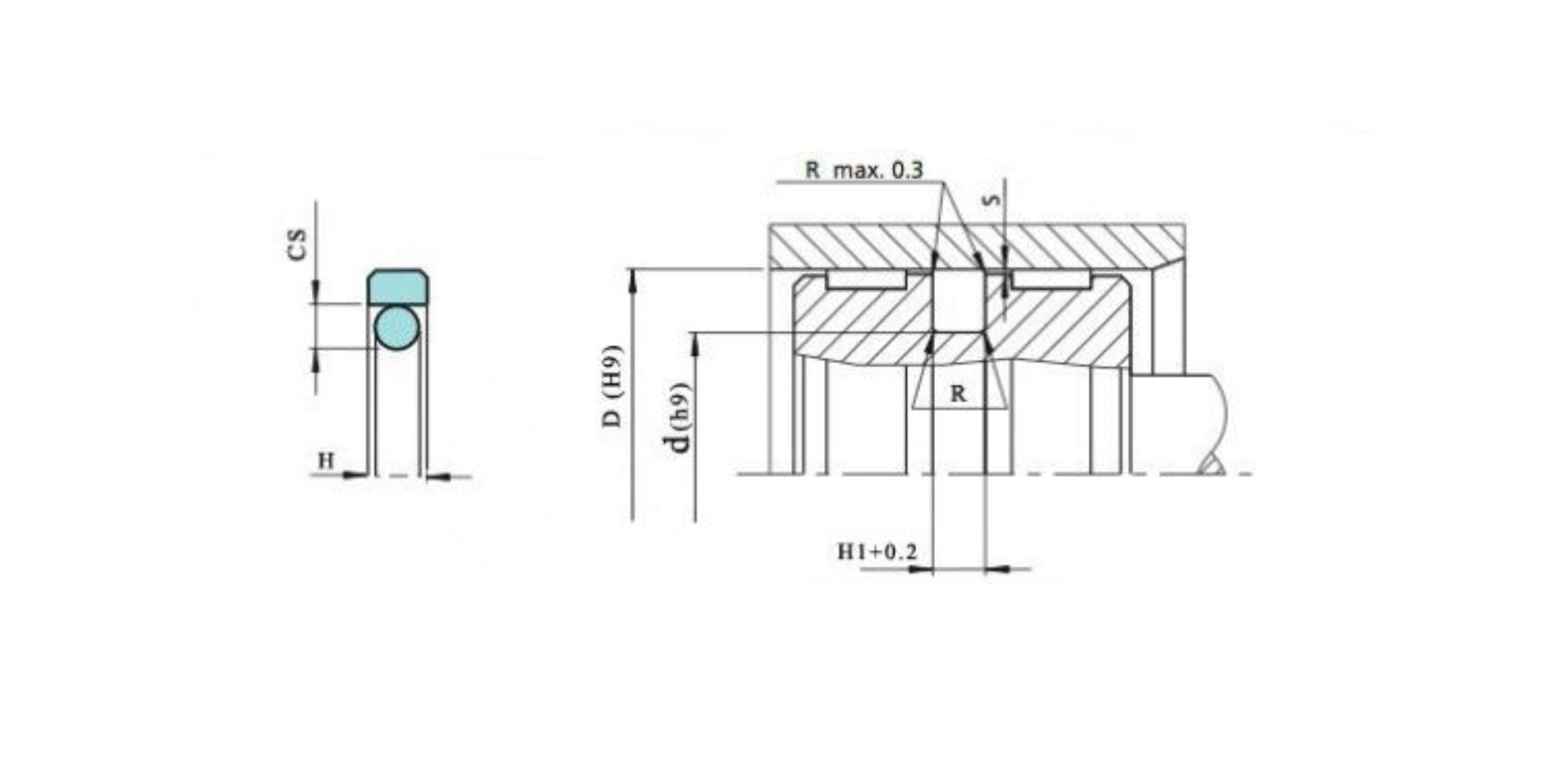

PK8-114.5x130x6.3-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • O-Ring
  • Unit

$ 52.26
$ 41.81 41.81 AUD

$ 52.26

Quantity
Your Price
1 - 4
$ 41.81
5 - 9
$ 39.72
10 - 24
$ 37.63
25 - 49
$ 33.97
50 +
$ 26.13

This combination does not exist.

Add to Cart

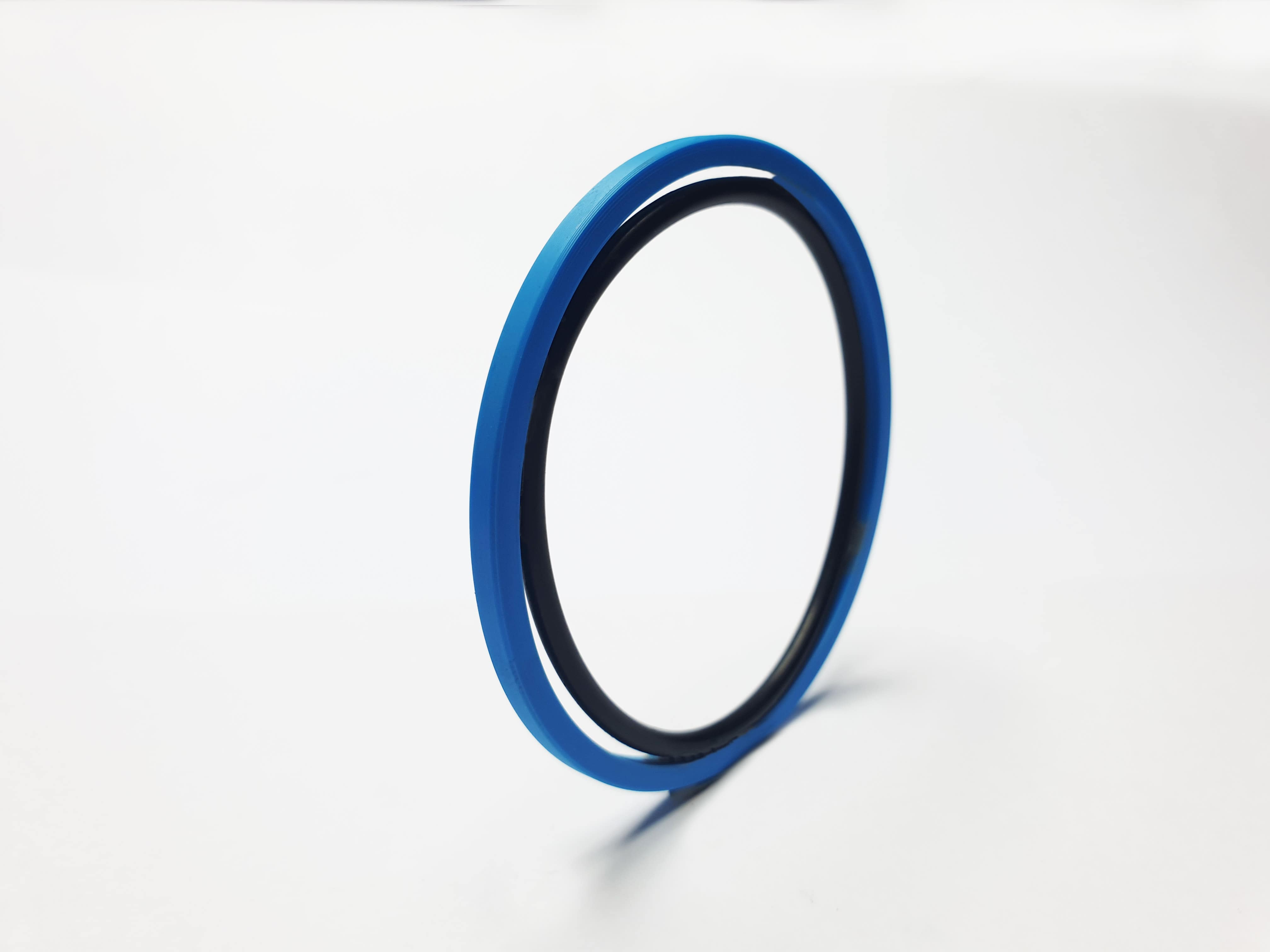

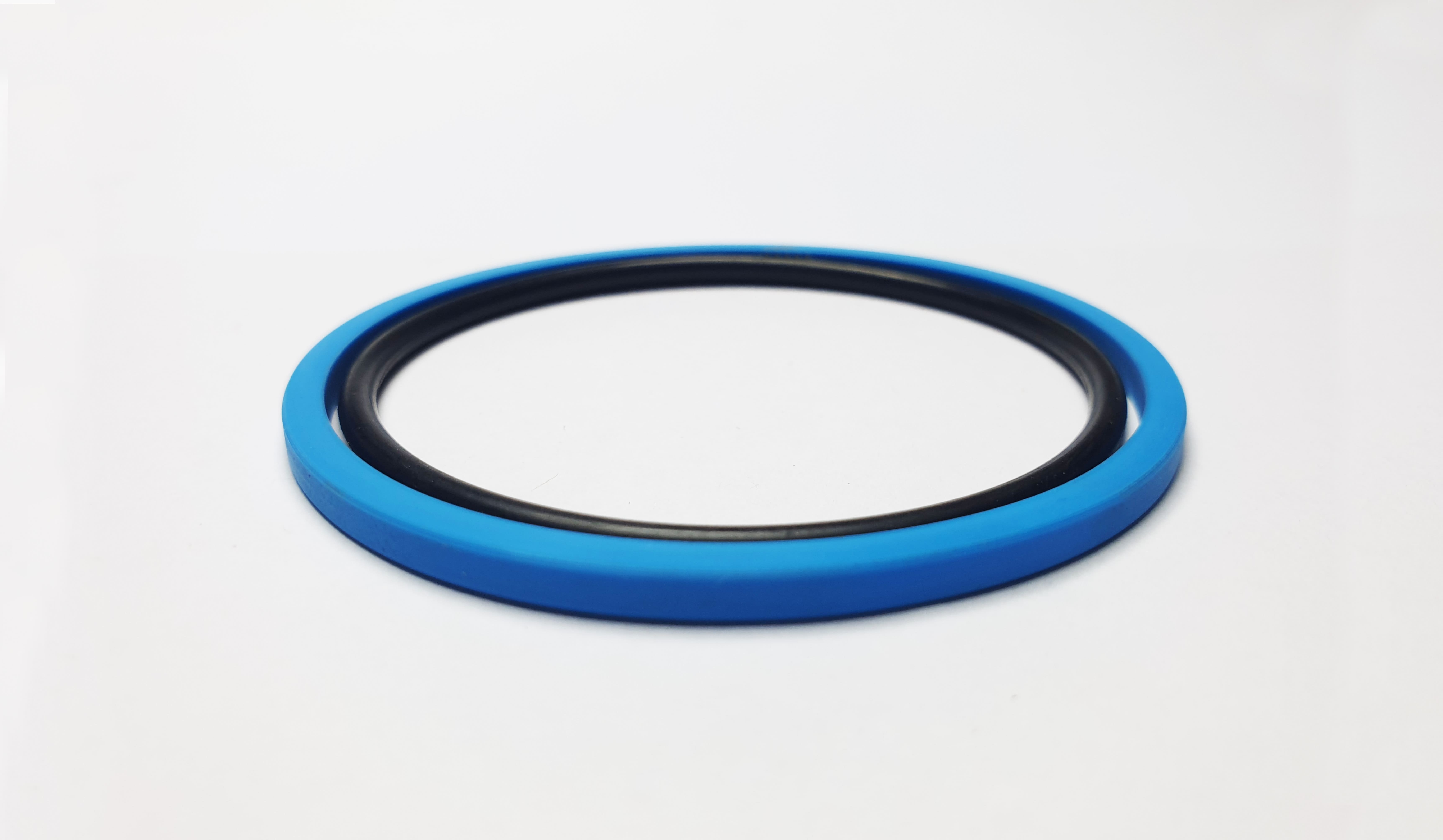

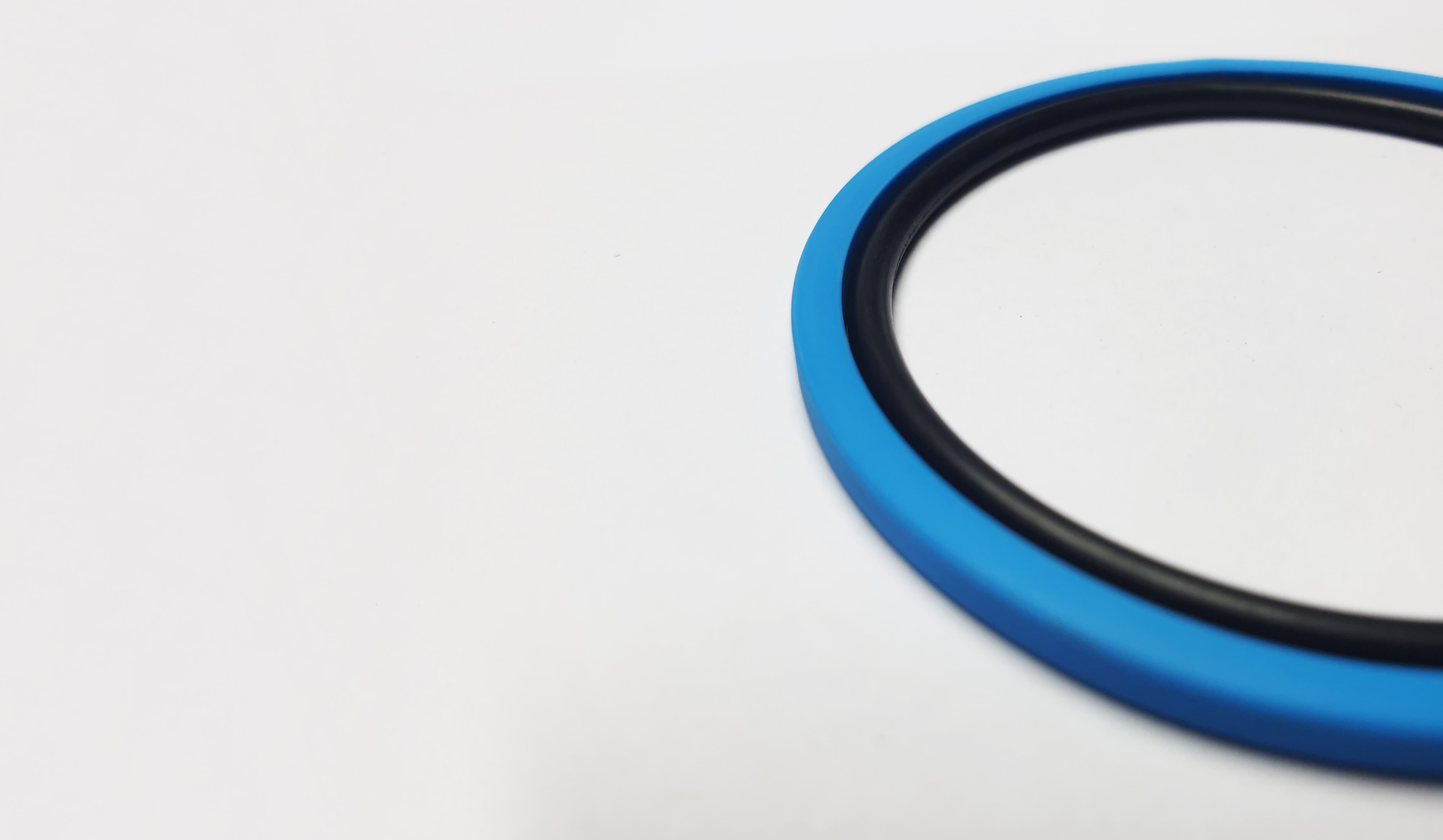

PK8 114.5 X 130 X 6.3 COMPO

Details:

d (h9)
:
114.5mm
H1+0.2
:
6.3mm
O-Ring
:
113.67x5.34 (BS349)
D (H9)
:
130mm
H
:
6.1mm
Material
:
COMPO
PK8-114.5x130x6.3-COMPO

Design

  • PK8 is a double acting piston seal that is suited for one piece pistons. It has a PTFE seal face with nitile energizer and dual face materials which gives pressure capability options. It is excellent for stick slip and high speed movements. PK8 is not suitable for a cylinder expected to hold position.

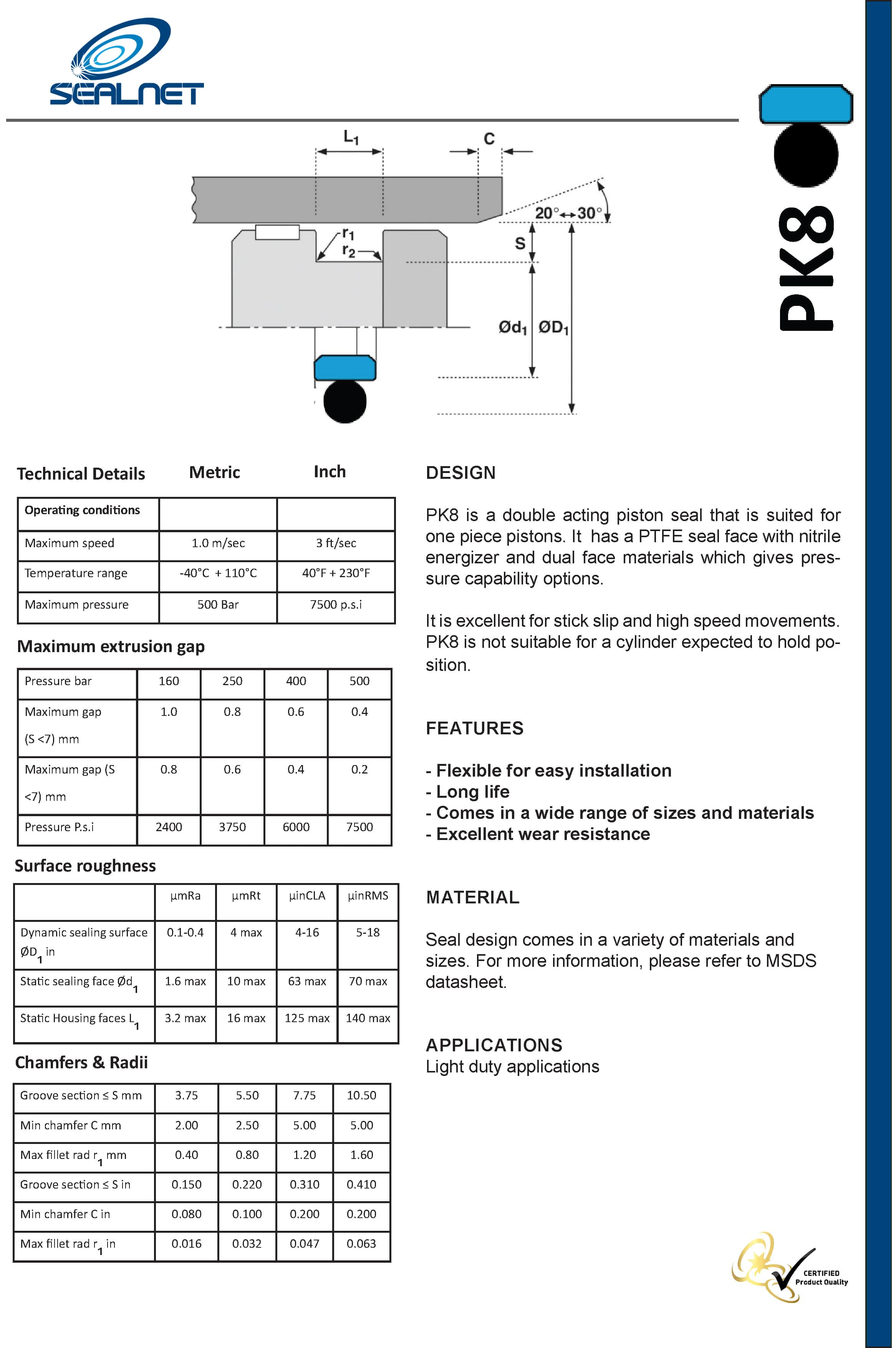

Download Datasheet


Features

  • Flexible for easy installation
  • Long life
  • Comes in a wide range of sizes and materials
  • Excellent wear resistance


Applications

  • Light duty applications
