1. PAK8-37.5x50x5.6-NBR
  2. PAK8
  3. Pneumatic Seals
  4. Standard Seals

PAK8-37.5x50x5.6-NBR

  • d (h9)
  • D (H9)
  • Material
  • L
  • D1
  • O-Ring
  • Unit
  • R

$ 22.50
$ 18.00 18.0 AUD

$ 22.50

Quantity
Your Price
1 - 4
$ 18.00
5 - 9
$ 17.10
10 - 24
$ 16.20
25 - 49
$ 14.63
50 +
$ 11.25

This combination does not exist.

Add to Cart

PAK8 37.5 X 50 X 5.6 NBR

Details:

d (h9)
:
37.5mm
L
:
5.6mm
D1
:
49.85mm
O-Ring
:
37.47x5.33 (BS325)
R
:
0.9mm
D (H9)
:
50mm
Material
:
NBR
PAK8-37.5x50x5.6-NBR

Design

  • PAK8 is a piston sealing set profile that consists of a PTFE piston sealing ring and an O-ring. PAK8 is combined as a sealing unit and is appropriate for double acting pistons in pneumatic cylinders. PAK8 has minimal break out and dynamic slide friction. A steady movement is guaranteed even at low velocities.

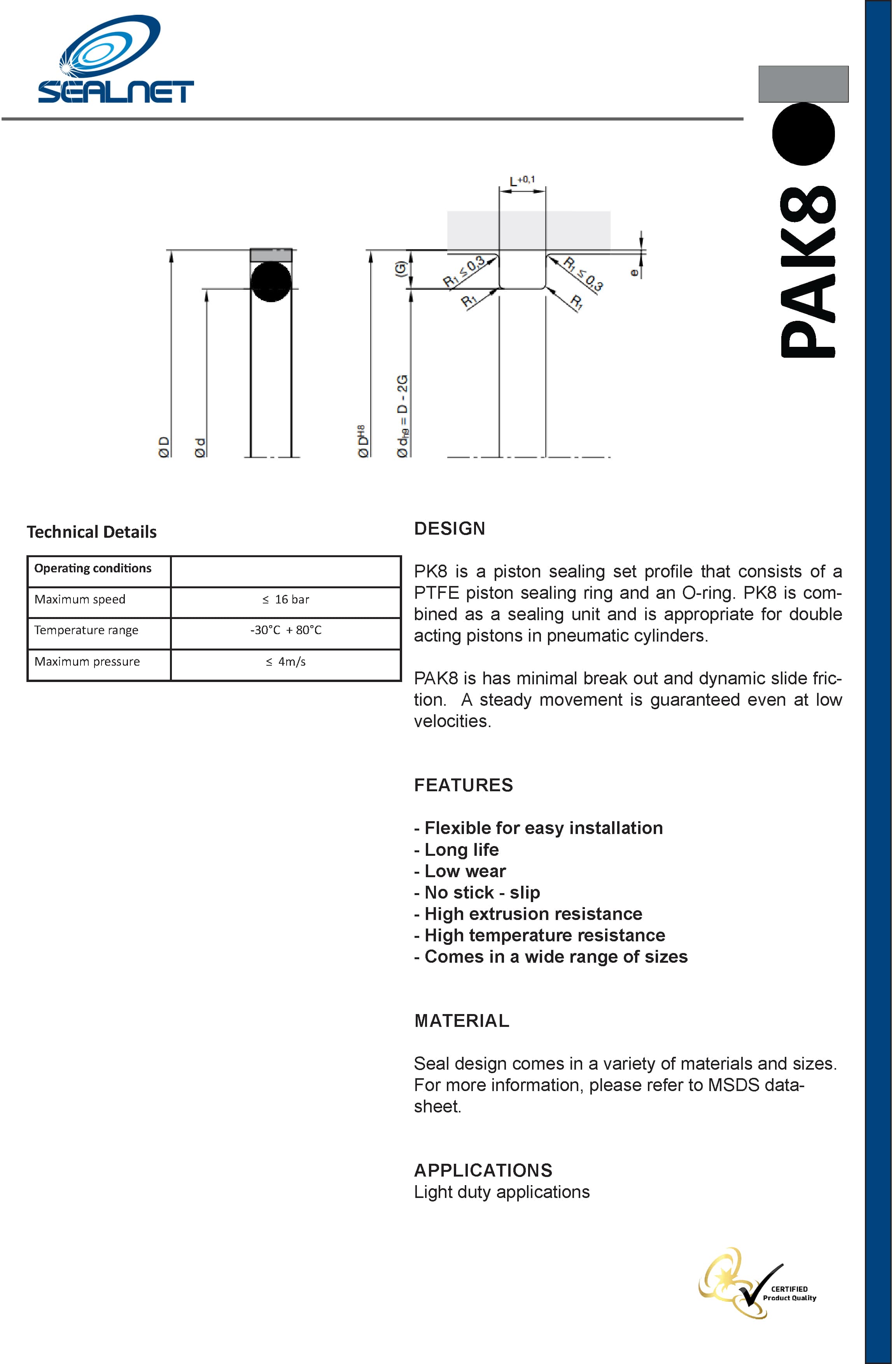

Download Datasheet


Applications

  • Flexible for easy installation
  • Long life
  • Low wear
  • No stick-slip
  • High extrusion resistance
  • High temperature resistance
  • Comes in a wide range of sizes


Application

  • Light to medium duty applications
