1. GS9C-95x104.4x8.4/8.8-COMPO
  2. GS9C
  3. Single Acting/ ROD Seals
  4. Standard Seals

GS9C-95x104.4x8.4/8.8-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • O-Ring
  • Unit

$ 45.07
$ 36.05 36.050000000000004 AUD

$ 45.07

Quantity
Your Price
1 - 4
$ 36.05
5 - 9
$ 34.25
10 - 24
$ 32.45
25 - 49
$ 29.29
50 +
$ 22.53

This combination does not exist.

Add to Cart



Details:

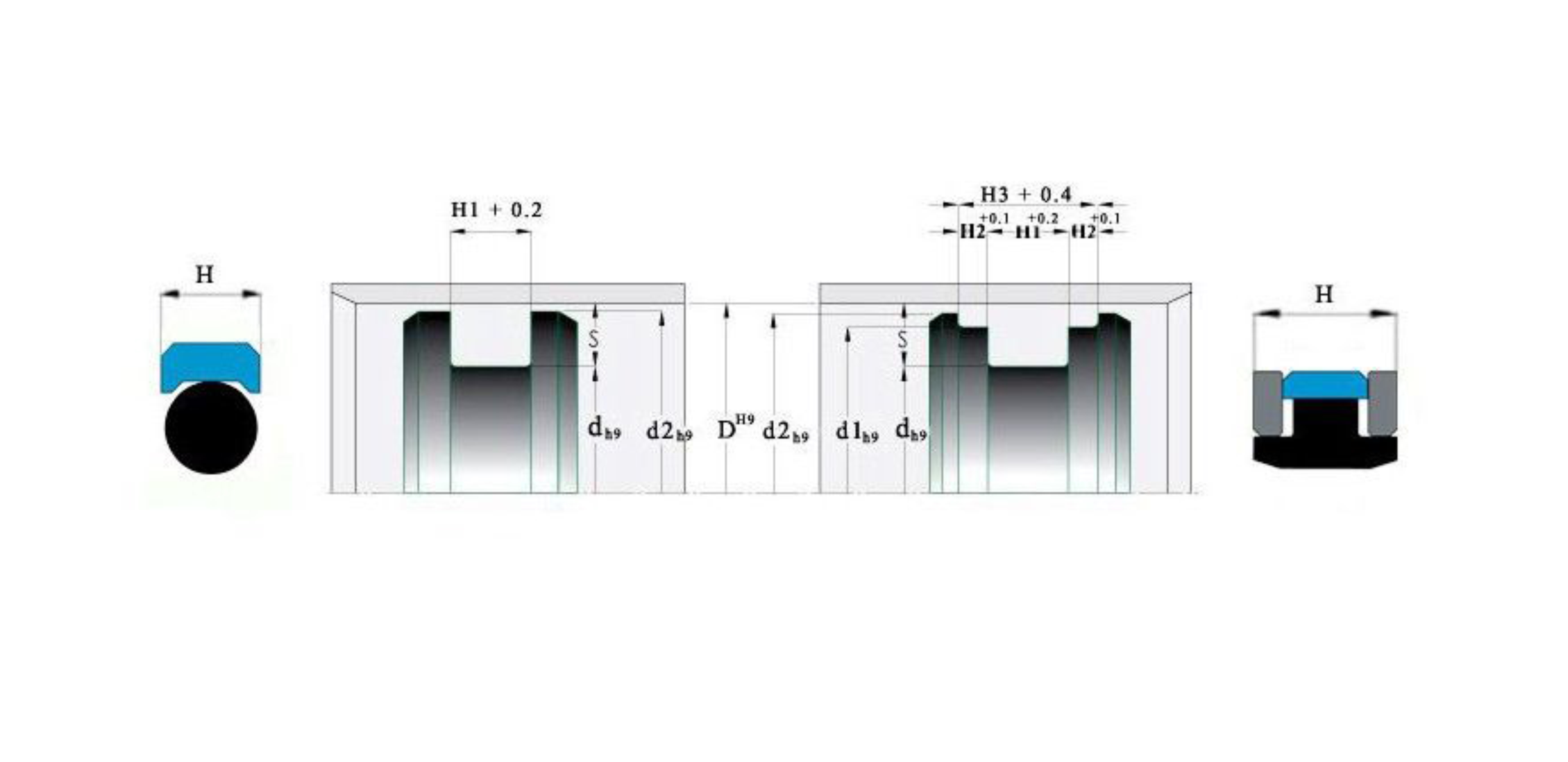

d (h9)
:
95mm
H1+0.2
:
8.8mm
O-Ring
:
94.62x5.34 (BS343)
D (H9)
:
104.4mm
H
:
8.4mm
Material
:
COMPO
GS9C-95x104.4x8.4/8.8-COMPO

Design

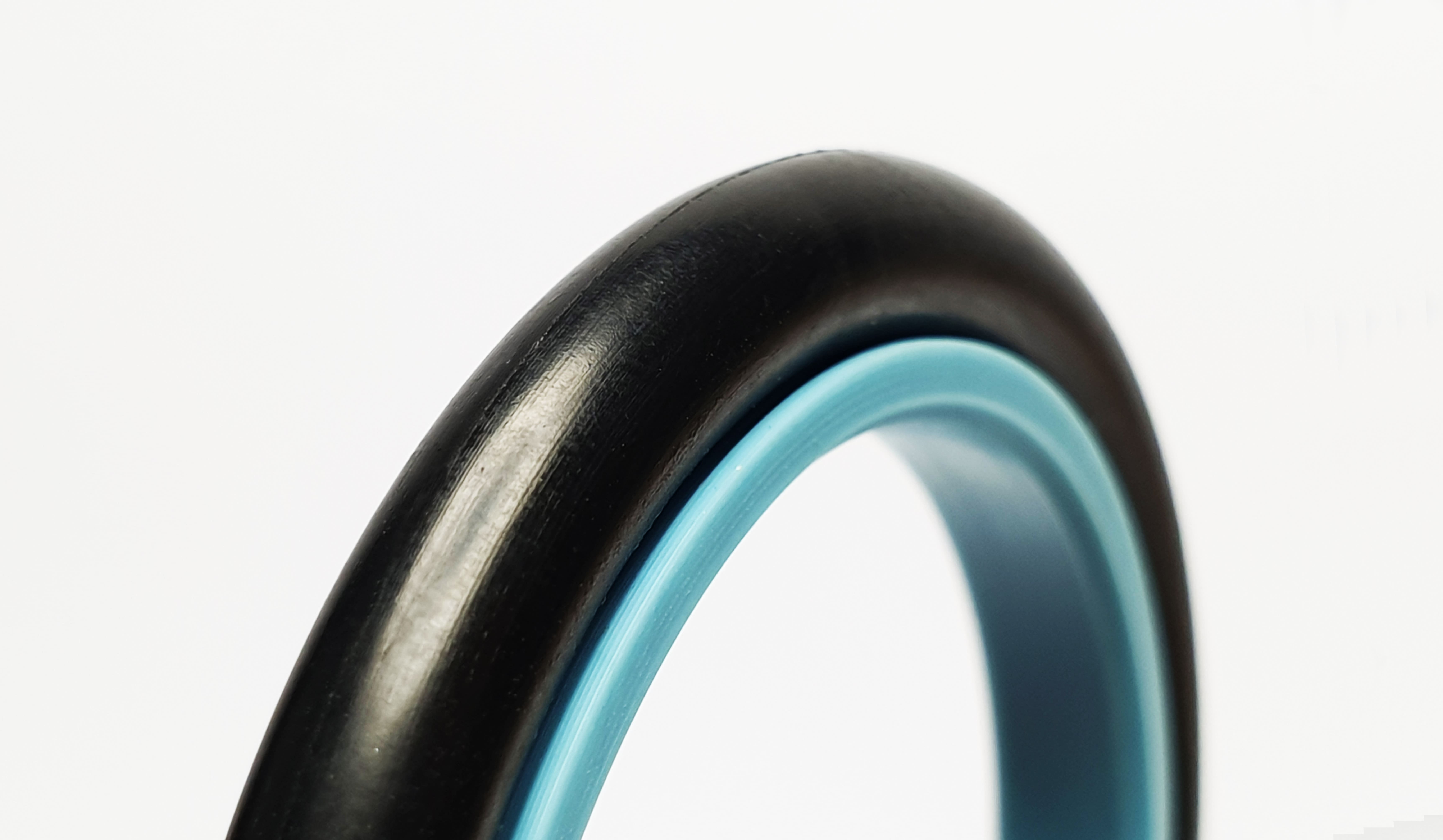

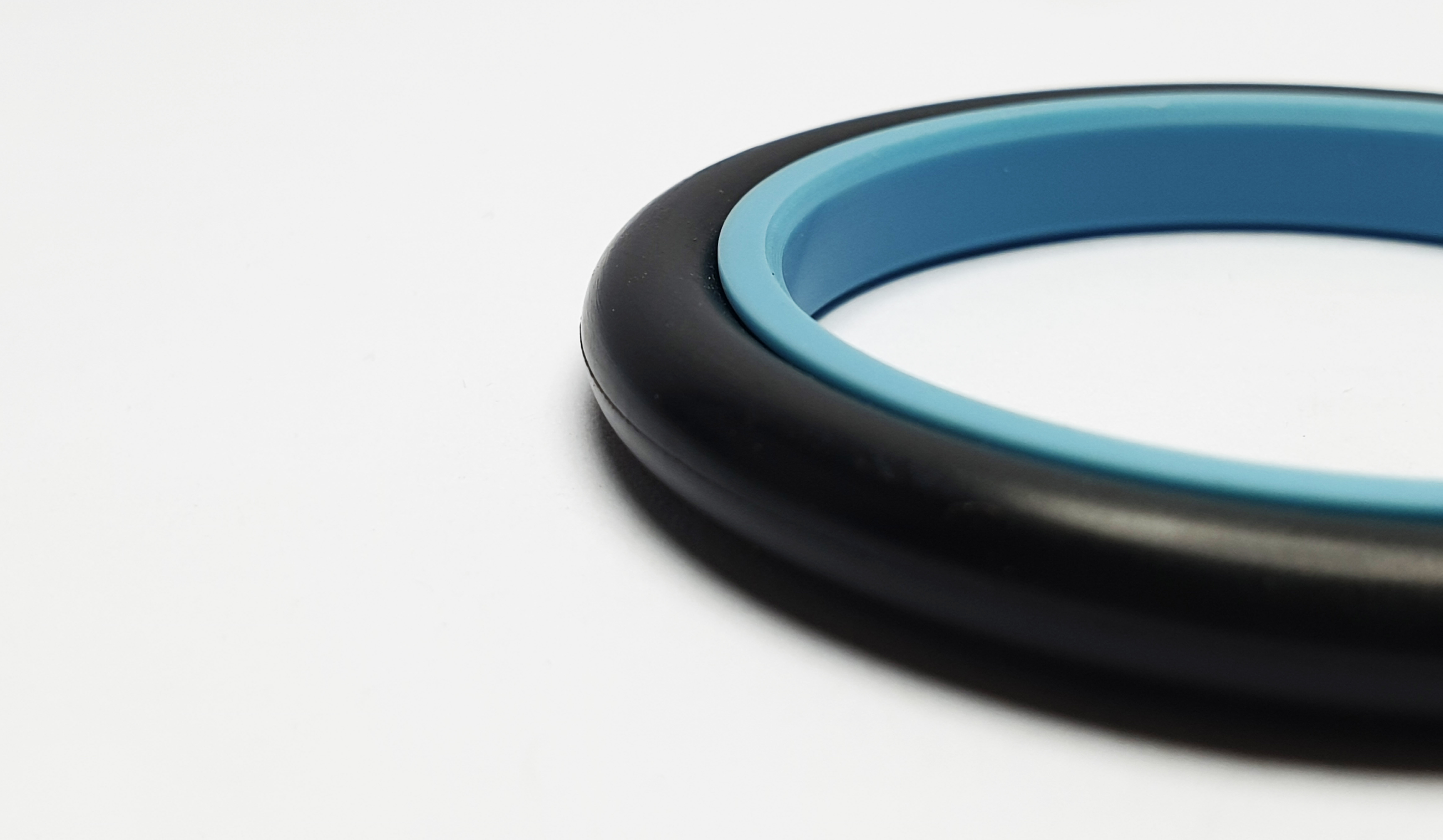

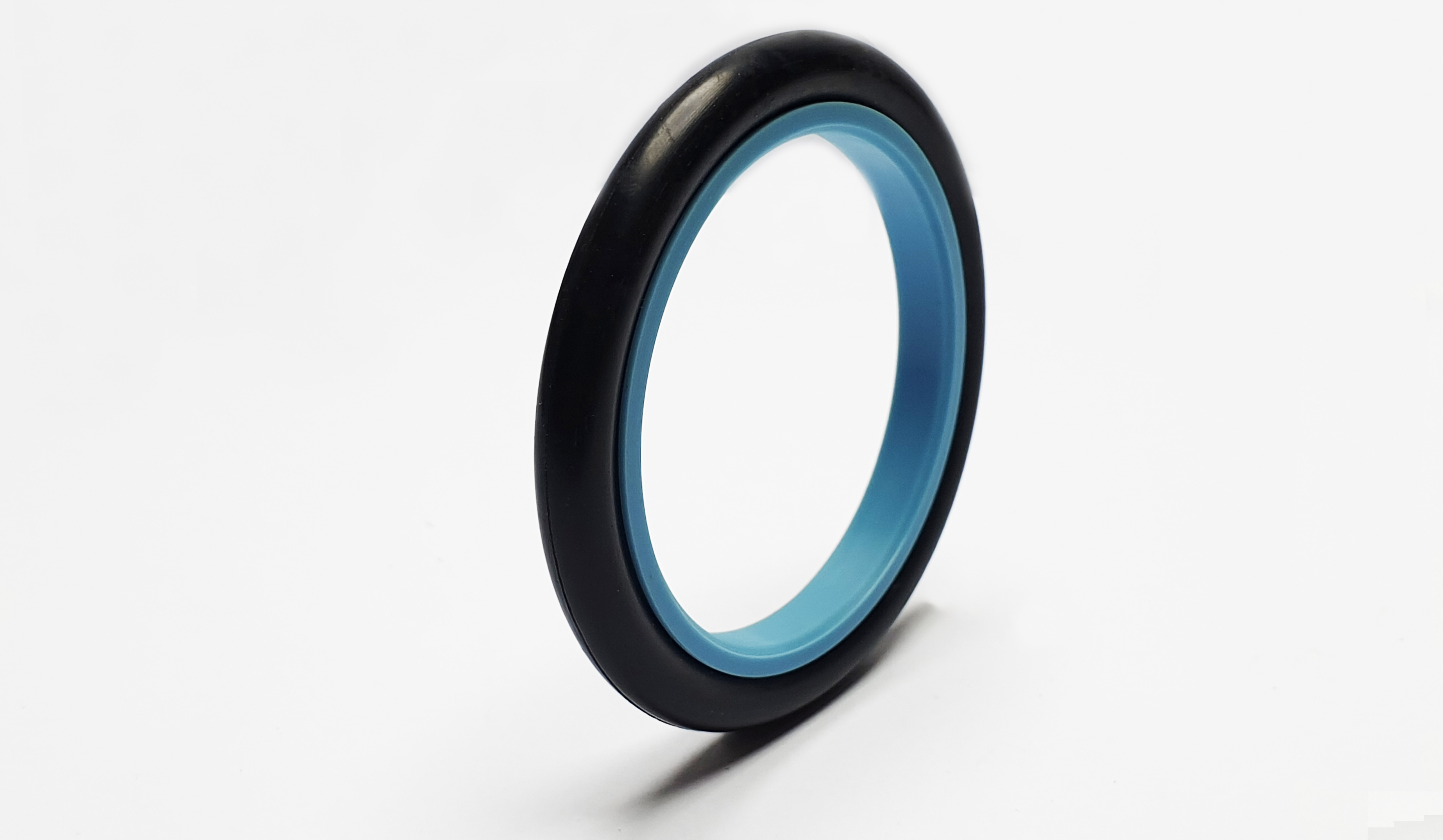

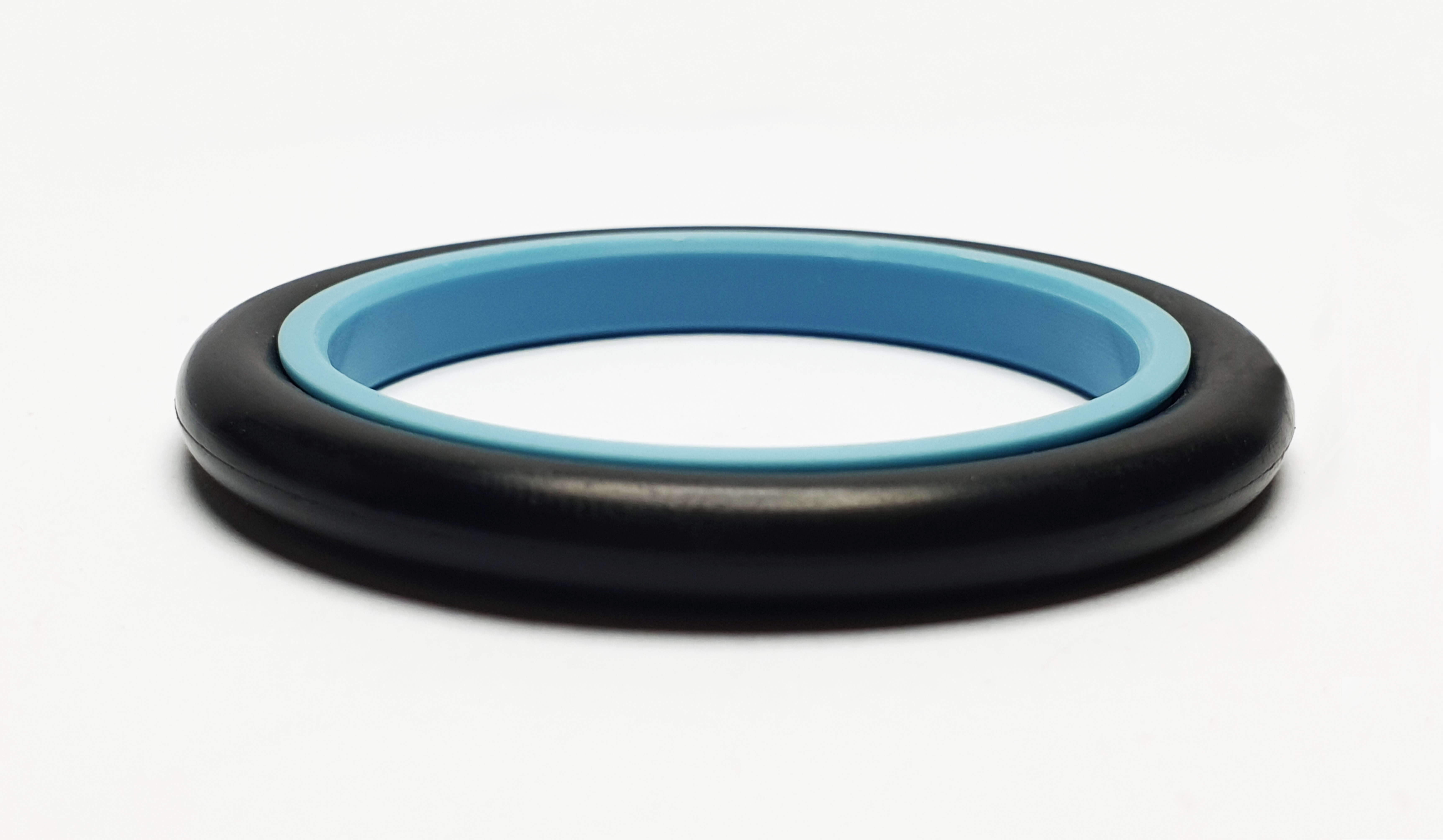

  • GS9C is a compact seal for light to medium duty hydraulic cylinders. It is a double acting gland seal with single acting capabilities which makes it a good choice for double acting applications where minimal dynamic leakage is required.

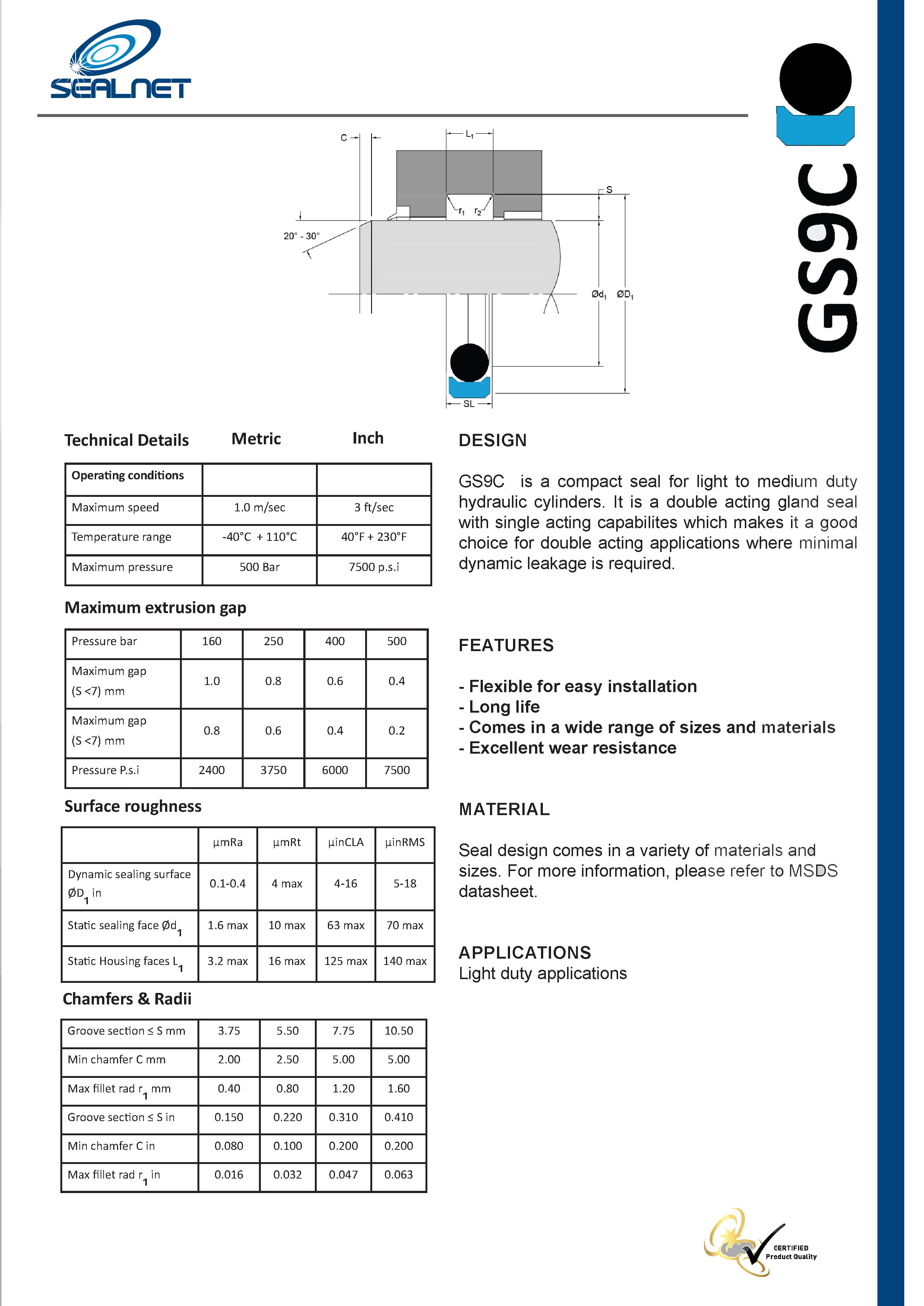

Download Datasheet


Features

  • Flexible for easy installation
  • Long life
  • Comes in a wide range of sizes and materials
  • Excellent wear resistance


Applications

  • Light duty applications.


Fluids

  • Mineral based oils, water/glycol and water emulsions
