25G-279.3x302.6x150-25G

25G 279.3 X 302.6 X 150 25G

d (h9)

279.3mm

Bearing Pressure

2N/mm

Temperature

-200 to +260

D (H9)

302.6mm

150mm

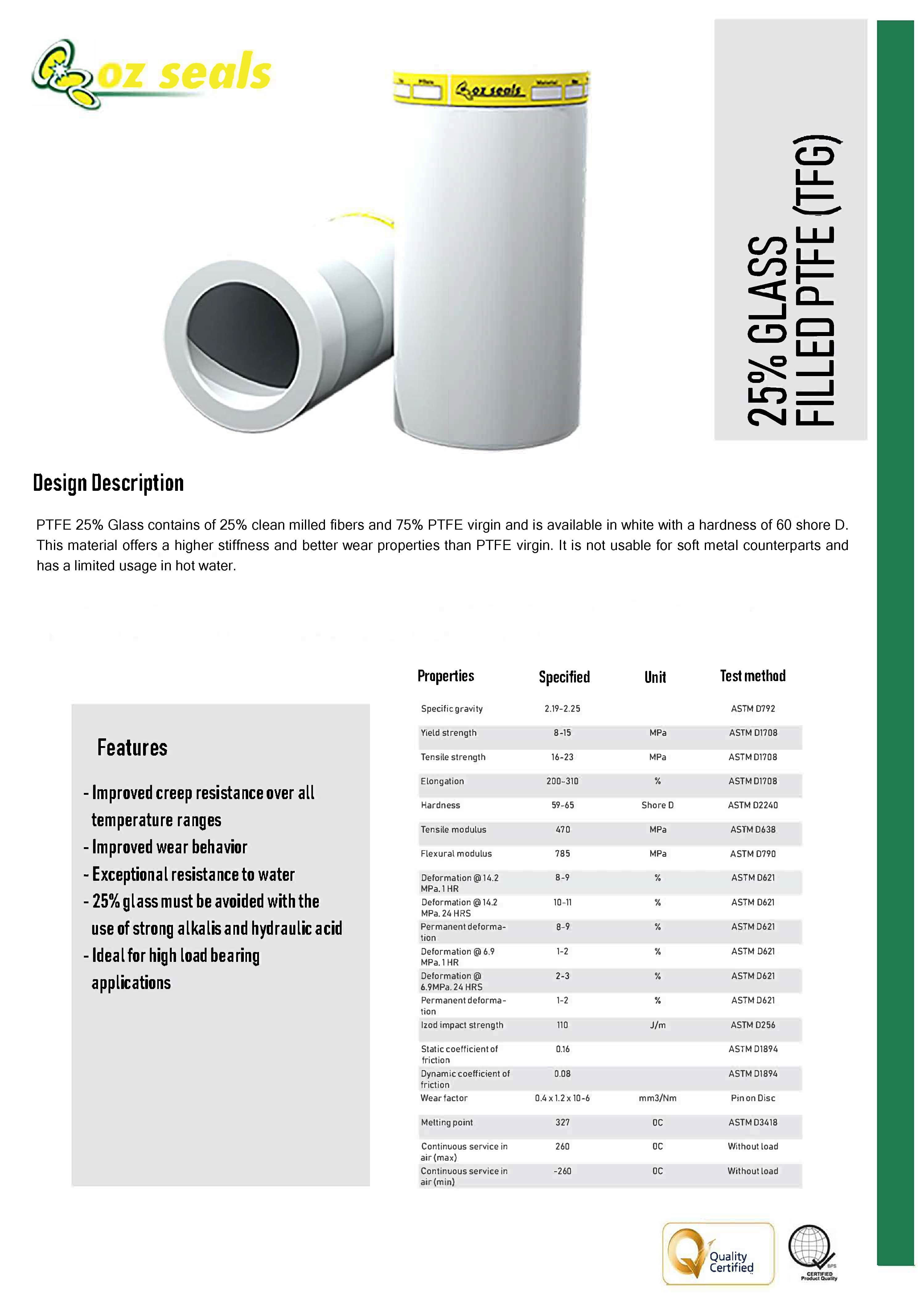

Material

25G

Used to improve the creep resistance of PTFE over all temperature ranges
Allows some compression required for sealing in both gaskets and
Glass fibre being an insulator, shows improves wear behaviour with little effect on electrical properties
Exceptional resistance to water
Ideal for high load bearing applications
25% glass filled PTFE must be avoided with the use of strong alkalis and hydraulic acids
