At Oz Seals, we offer a wide range of Oz Mechanical Seals for all types of applications, including:
- conical spring seals
- elastomeric bellows
- parallel spring diaphragm type seals
- balanced diaphragm seals
- parallel spring O-mounted seals
- PTFE wedge type seals
- wave spring seals
- water pump seals
- direct replacement seals for common OEM pumps
- direct replacement seals for food
- beverage and dairy industries
- cartridges
- stationery seats
- and much more…
PRODUCTS
OZ CON
OPERATING PRESSURE
-
- Material: NBR/Viton
- Pressure: 10 bar
- Speed: 20 m/s
- Temperature: -20°C to +180°C(-4ºF to +356ºF)
Features
- The highly conical spring type seals are robust seals
Application
- The design is suited for DIN and standard housing dimensions
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ BEL
OPERATING PRESSURE
-
- Material: NBR/Viton
- Pressure: 8 bar
- Speed: 10 m/s
- Temperature: -20°c to + 200°C(-4ºF to +392ºF)
Features
- The highly conical spring type seals are robust seals
Application
- The design is suited for DIN and standard housing dimensions
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ PARDI
OPERATING PRESSURE
-
- Material: NBR/Viton
- Pressure: 5 bar
- Speed: 10 m/s
- Temperature: -20ºC to +200ºC (-4ºF to +392ºF)
Features
- The highly conical spring type seals are robust seals
Application
- The design is suited for DIN and standard housing dimensions
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ BALDI
OPERATING PRESSURE
-
- Material: Wifflon
- Pressure: 5 bar
- Speed: 10 m/s
- Temperature: ;-20ºC to +200ºC (-4ºF to +392ºF)
Features
- The highly conical spring type seals are robust seals
Application
- Design suited for pumps, mixers, agitators, compressors and other rotary shafts equipment
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ PARO
OPERATING PRESSURE
-
- Material: Viton/Teflon
- Pressure: 30 bar
- Speed: 15 m/s
- Temperature: -20ºC to +200ºC (-4ºF to +392ºF)
- Viscosity: 150,000 cp
- Particle: 7.0%
Features
- Design consists of standard components
- 1. Stationary O-Ring
- 2.Stationary Seat
- 3.Rotary Face
- 4.Seal Head Retainer
- 5. Rotary O-Ring
Application
- Design suited for pumps, mixers, agitators, compressors and other rotary shafts equipment
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ MULTI
OPERATING PRESSURE
-
- Material: Viton/Teflon
- Pressure: 30 bar
- Speed: 25 m/s
- Temperature: -60ºC to +250ºC (-76ºF to +482ºF)
- Viscosity: 300 cp
- Particle: 0.5 %
Features
- Design consists of standard components
- 1. Seal face
- 2. Circlip
- 3. Wedge/O-ring
- 4. Plate
- 5. Coils
Application
- Design suited for pumps, mixers, agitators, compressors and other rotary shafts equipment
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ WAVE
OPERATING PRESSURE
-
- Material: Viton/Teflon
- Pressure: 17 bar
- Speed: 20 m/s
- Temperature: -40ºC to +200ºC (-40ºF to +392ºF)
Features
- Design consists of standard components
- 1. Seal face
- 2. Sleeve
- 3. O-ring
- 4. Retainer
- 5. Grub Screw
Application
- Design is a Bi-Directional Mechanical Seal suitable for many sealing application requirements, including chemical duties
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ WPS
OPERATING PRESSURE
-
- Material: Viton/Teflon
- Pressure: 5 bar
- Speed: 13 m/s
- Temperature: -20ºC to +100ºC (-4ºF to +213ºF)
Features
- Design consists of standard components
- 1. Seal face
- 2. Retaining plates
- 3. Sleeve
- 4. Bellows
- 5. Coil
Application
- Design is a water pump seal commonly used swimming pools, spa pools, shower pumps, central heating systems, irrigation and light fluid duties
Fluids
- Mineral based oils, water/glycol and water emulsions
OZ SEAT
OPERATING PRESSURE
-
- Material: Viton/Teflon
- Pressure: 5 bar
- Speed: 13 m/s
- Temperature: -20ºC to +100ºC(-4ºF to +213ºF)
Features
- Design is a standard O’Ring mounted short stationary design
Application
- Design is suited for DIN and other standard housings
Fluids
- Mineral based oils, water/glycol and water emulsions

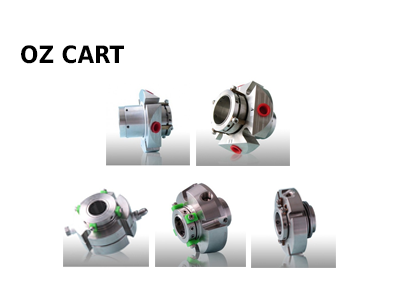

OZ CART
![](https://www.ozseals.com/wp-content/uploads/2017/09/cart.png")
OPERATING PRESSURE
-
- Material: NBR/Viton
- Pressure: 28 bar
- Speed: 35 m/s
- Temperature: -30°C to +110°C
Features
- Double acting glide style gland seal
Fluids
- Mineral based oils, water/glycol and water emulsions
SEALING SOLUTIONS
PRODUCT PERFORMANCE ASSESSMENT
Product: OZ PARDI
The Oz Mechanical Seals (OZ PARDI) covers all standard pump shafts, working lengths and housing size ranges.
Read More
CATALOGUE
